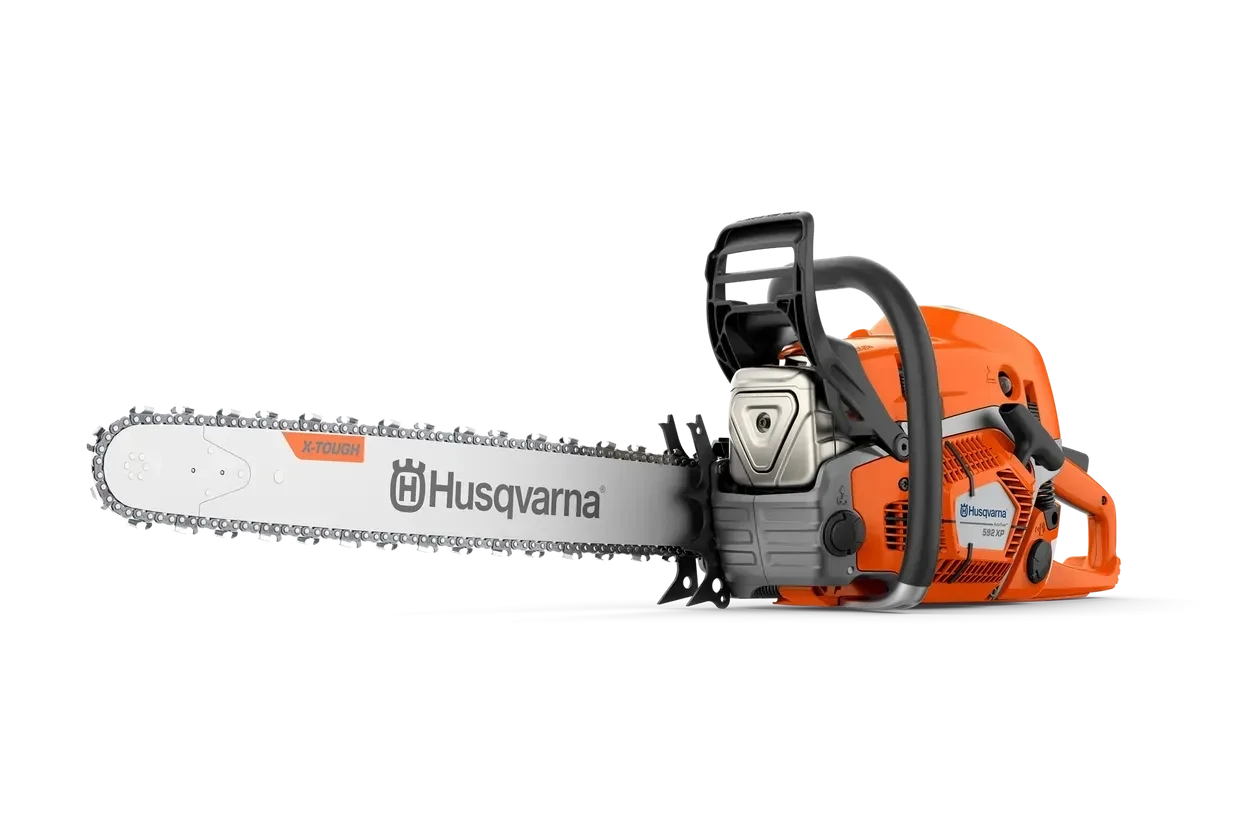

32" X-Tough RSN - 3/8" - 1,5mm - X-Cut C85

SKU: 970 49 31‑32

32" X-Tough RSN - 3/8" - 1,3mm - X-Cut C83

SKU: 970 49 31‑52

Chain speed at max power

75.5 fts

Cylinder displacement

5.66 cu.inch

Power output

7.6 hp

Torque, max.

5.87 Nm

Torque, max. at rpm

7,800 rpm

Clutch engagement speed (±120)

4,300 rpm

Electrode gap

0.02 in

Idling speed

2,800 rpm

Ignition module air gap

0.01 in

Maximum power speed

9,600 rpm

Oil pump type

Adjustable flow, no flow at idle

Spark Plug

NGK CMR6H

Equipment

Recommended bar length, min

18 in

Pitch

3/8"

Recommended bar length, max

36 in

Chain type

C83

Bar length

50 cm

Bar length (inch)

20 in

Sprocket type

Rim 7

Dimensions

Weight (excl. cutting equipment)

16.3 lbs

Sound and noise

Sound pressure level at operators ear

112 dB(A)

Sound power level, guaranteed (LWA)

119 dB(A)

Sound power level, measured

118 dB(A)

Vibration

Equivalent vibration level (ahv, eq) rear handle

5.9 m/s²

Equivalent vibration level (ahv, eq) front handle

6.7 m/s²

Lubricant

Oil tank volume

0.89 US pint

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1

Emission

Exhaust emissions (CO2 EU V)

736 g/kWh
