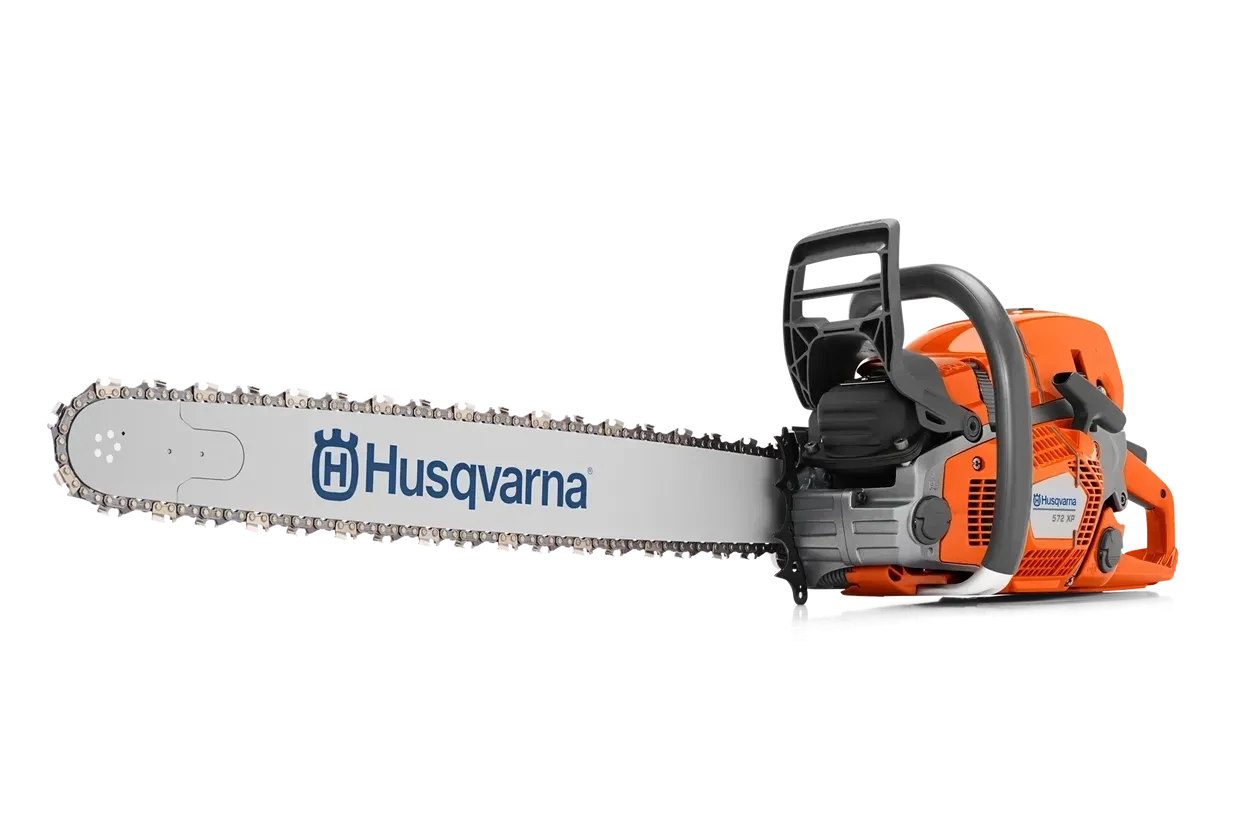

Engine

24" RSN 3/8" 1,3 mm C83

SKU: 966 73 31‑08

Chain speed at max power

72.2 fts

Cylinder displacement

4.3 cu.inch

Power output

5.8 hp

Torque, max.

4.5 Nm

Torque, max. at rpm

8,200 rpm

Clutch engagement speed (±120)

3,700 rpm

Electrode gap

0.02 in

Idling speed

2,700 rpm

Ignition module air gap

0.01 in

Maximum power speed

9,900 rpm

Oil pump type

Adjustable flow, no flow at idle

Spark Plug

NGK BPMR7A

Equipment

Recommended bar length, min

15 in

Pitch

3/8"

Recommended bar length, max

28 in

Chain type

C83

Bar length

60 cm

Bar length (inch)

24 in

Sprocket type

Rim 7

Gauge

.050"

Dimensions

Weight (excl. cutting equipment)

14.5 lbs

Sound and noise

Sound pressure level at operators ear

107 dB(A)

Sound power level, guaranteed (LWA)

120 dB(A)

Sound power level, measured

118 dB(A)

Vibration

Equivalent vibration level (ahv, eq) rear handle

4.1 m/s²

Equivalent vibration level (ahv, eq) front handle

5 m/s²

Lubricant

Oil tank volume

0.7 US pint

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1

Emission

Exhaust emissions (CO2 EU V)

841 g/kWh
