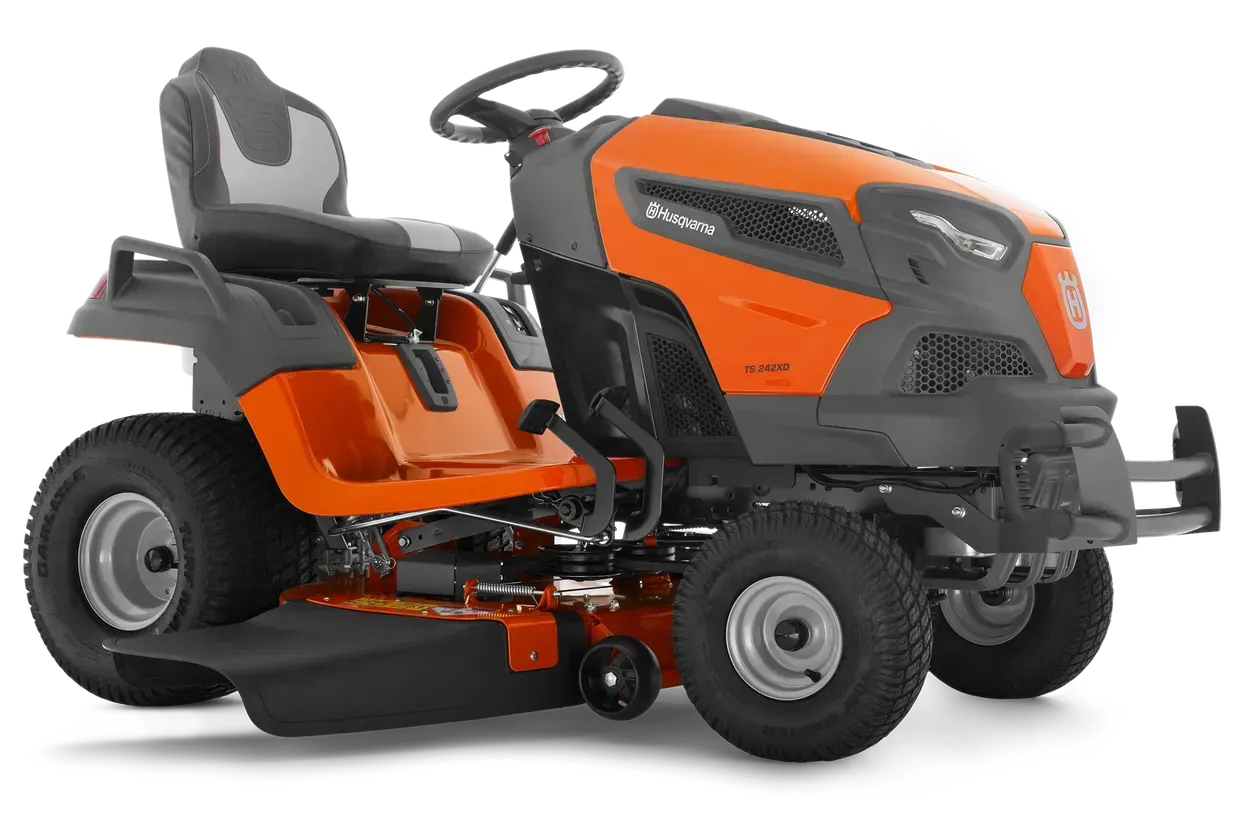

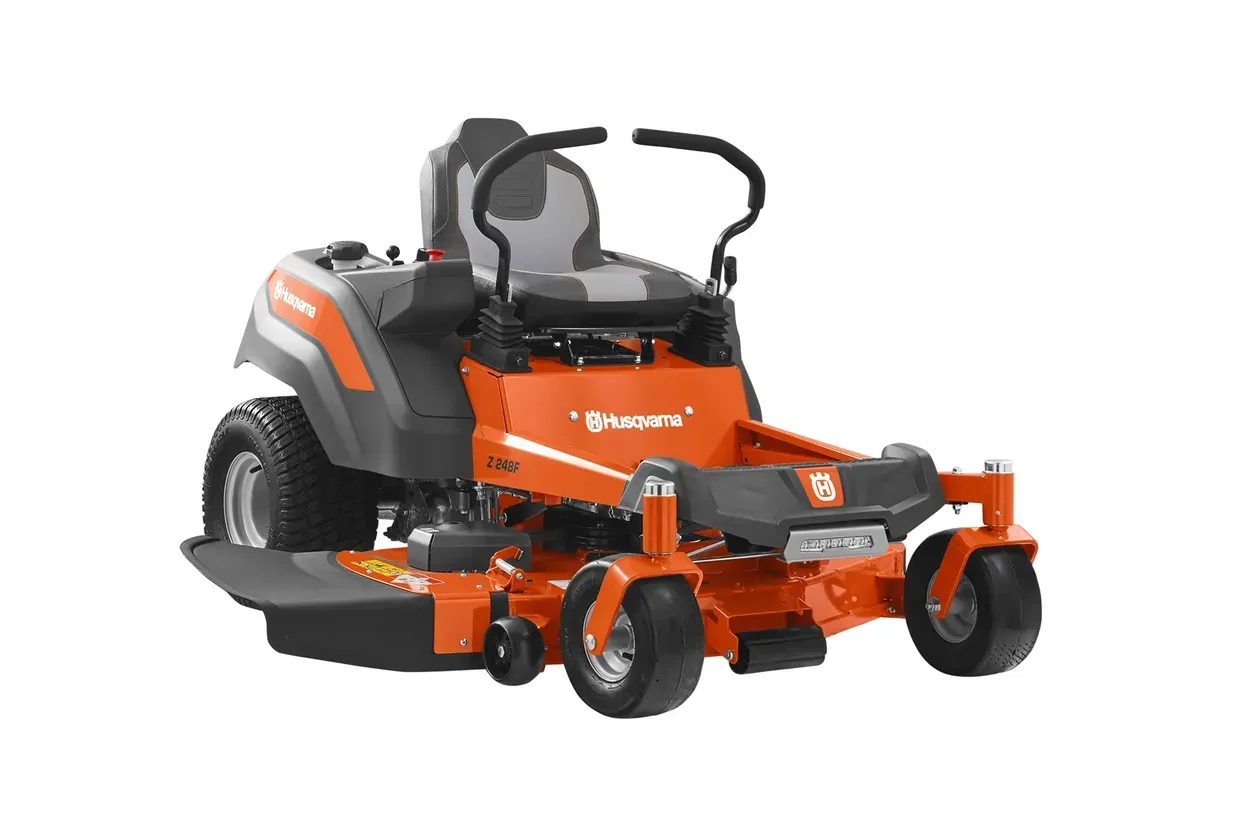

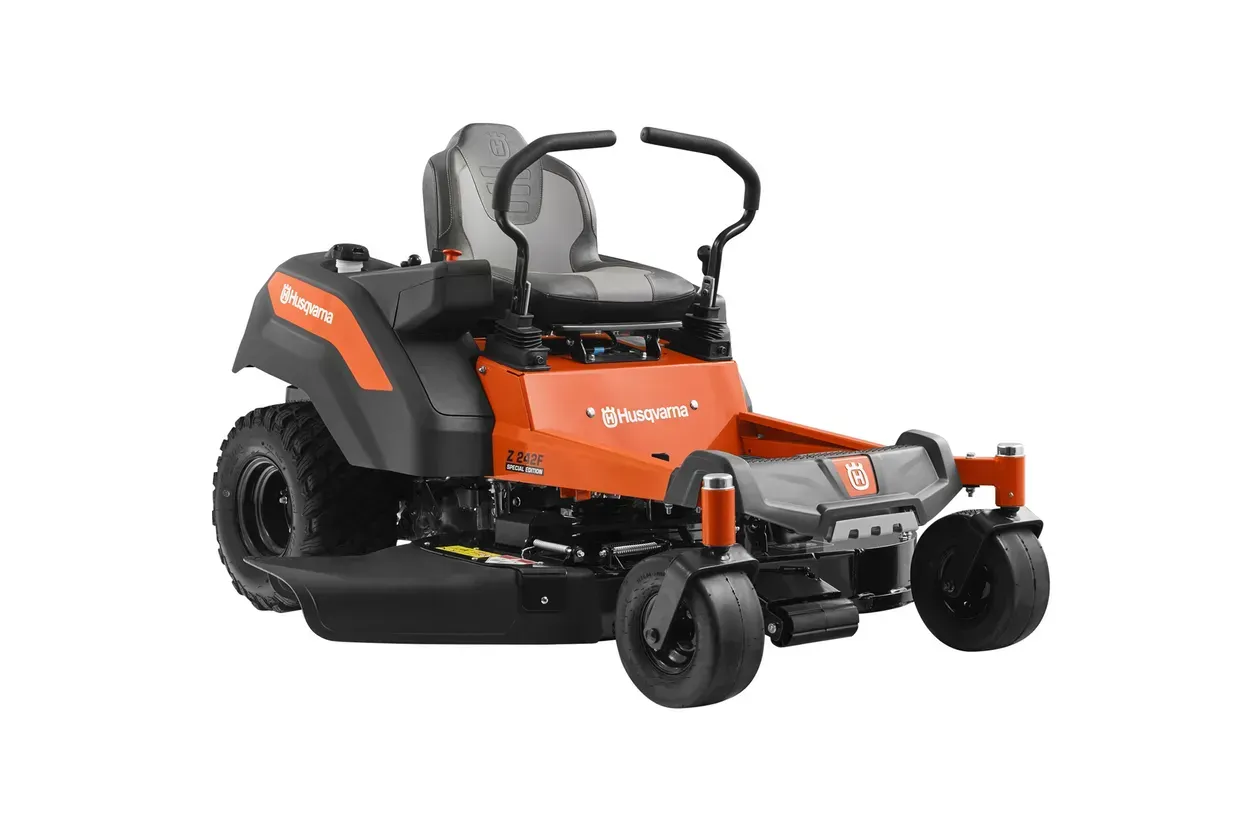

Residential Mowers

Residential Mowers In Stock

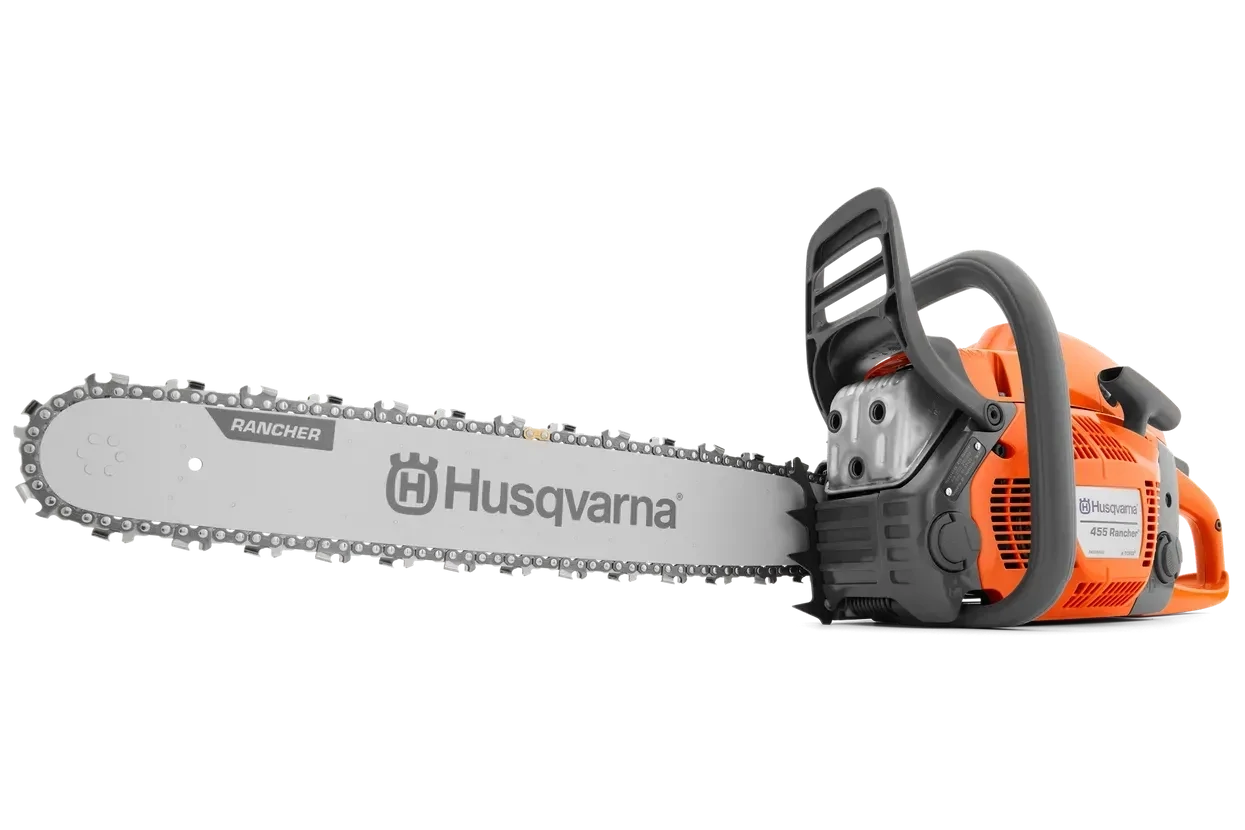

455 Rancher 20" Chainsaw

455 Rancher 20" Chainsaw

Store / Hand-Held Equipment
$0.00
In stock
Product Details
Engine
20",3/8", X-cut 1,3 mm, Rancher Bar
SKU: 970 61 32‑60
Chain speed at max power 65.62 fts
Cylinder displacement 3.4 cu.inch
Power output
3.5 hp
Torque, max. 3.2 Nm
Torque, max. at rpm 6,600 rpm
Clutch engagement speed (±120) 3,900 rpm
Electrode gap 0.02 in
Idling speed 2,700 rpm
Ignition module air gap 0.01 in
Maximum power speed 9,000 rpm
Oil pump capacity, max 17 ml/min
Oil pump capacity, min 6 ml/min
Oil pump type Automatic
Spark Plug NGK BPMR7A, Champion RCJ7Y
Equipment
Recommended bar length, min 13 in
Pitch 3/8"
Recommended bar length, max 24 in
Chain type S83G
Bar length 50 cm
Bar length (inch) 20 in
Sprocket type Spur 7
Dimensions
Weight (excl. cutting equipment) 13.2 lbs
Sound and noise
Sound pressure level at operators ear 104 dB(A)
Sound power level, guaranteed (LWA) 114 dB(A)
Sound power level, measured 112 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle 6.9 m/s²
Equivalent vibration level (ahv, eq) front handle 3.8 m/s²
Lubricant
Oil tank volume 0.7 US pint
Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO2 EU V)
893 g/kWh
Show More
